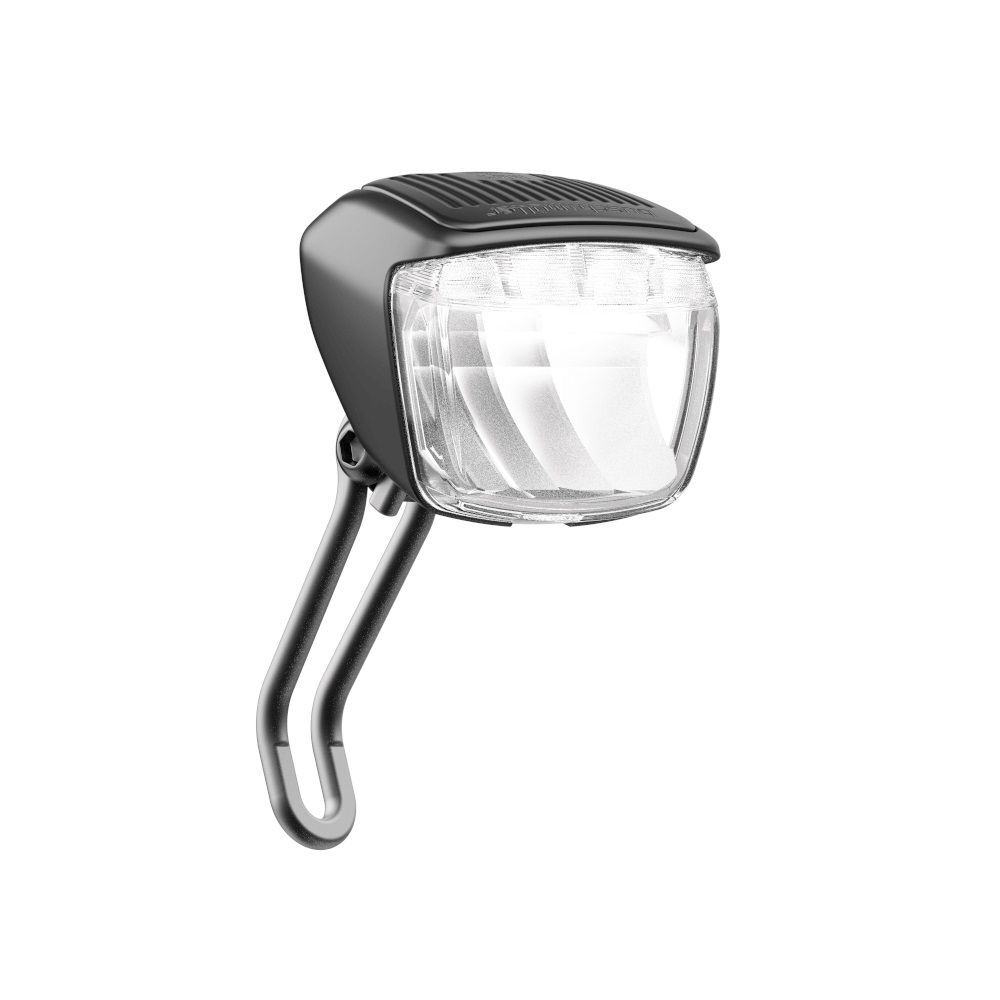

Busch & Müller Briq-S Premium E E-Bike Front Light 110 Lux 9–15 V DC
SKU code: BPW-0802
In Stock
The Briq-S Premium E is a 110 lux e-bike headlight with daytime running light, wired to a 9–15 V DC lighting output. Not for dynamos and not for 36–48 V outputs.
Highlights
- 110 lux with a wide light field and close-range light
- Daytime running light
- 9–15 V DC — for 12 V lighting outputs
- Attachable front reflector
- Stainless fork bracket included; handlebar mount available; includes wires and clips (BPW)
Bright, compact, 12 V
The Briq-S Premium E is the high-output choice for e-bikes with a 12 V lighting circuit (many Bosch and Shimano STEPS systems). Check your system's lighting output is inside 9–15 V before ordering.
E-bike (DC) only
Wired to the e-bike's lighting output: 9–15 V DC input, 5 W draw. It is switched from the e-bike's display or controller and must not be connected to a dynamo. Check your motor system's lighting output voltage before ordering — the Bosch, Shimano STEPS, Bafang and Yamaha outputs all sit in different places.
Fitted and wired in our workshop on request — book a dynamo or e-bike lighting install with Tune Cycles.
Busch & Müller lighting and mirrors are covered against defects in materials and workmanship. Damage from crashes, water ingress through an unsealed connection, connecting a DC e-bike light to a dynamo (or a dynamo light to an e-bike supply), and normal wear of brackets, straps and mirror glass aren't covered.
For warranty support, return the item to Tune Cycles with your proof of purchase and we'll manage the claim with the distributor for you. This cover is in addition to your rights under the Australian Consumer Law.
- 110 lux with a wide light field and close-range light
- Daytime running light
- 9–15 V DC — for 12 V lighting outputs
- Attachable front reflector
- Stainless fork bracket included; handlebar mount available; includes wires and clips (BPW)
| Brand | Busch & Müller |
|---|---|
| Model | Briq-S Premium E |
| Light output | 110 lux, low beam |
| Power | 9–15 V DC (e-bike), 5 W |
| Mounting | Fork crown (stainless bracket included) or handlebar |
| Dimensions | 64 × 42 × 50 mm |
| Weight | 85 g |
| Housing | Aluminium and plastic |
| Daytime running light | Yes |
| Approval | StVZO (German road-traffic approved beam) |
| Article number | 1532R12TS-04 (EAN 4006021015104) |
| SKU | BPW-0802 |
| Model # | 0802 |
| Barcode # | 4006021015104 |
| Brand | Busch & Müller |
