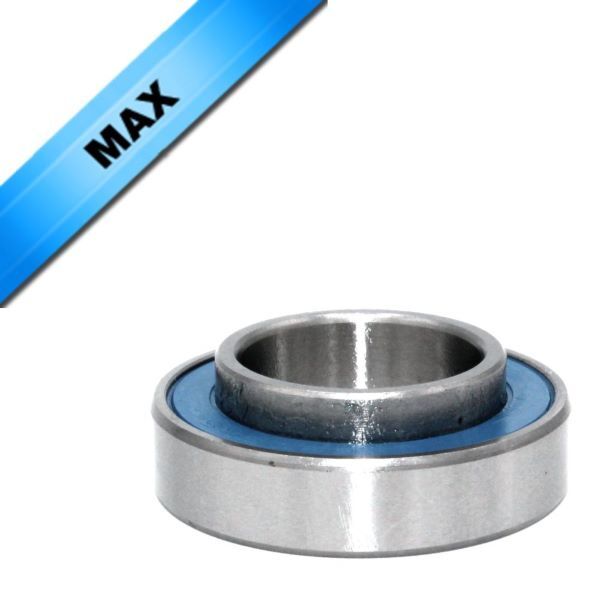

A 10x22x6/9mm cartridge bearing for a worn suspension pivot bearing, built to the exact size the original ran so the fit and preload stay right.

Highlights

  • Higher ball count than a standard cartridge bearing for extra load capacity
  • Chrome steel balls (ABEC 3) and SAE 52100 chrome steel races
  • 2RS seals for wet and dust resistance
  • High-fill-rate grease for slow, oscillating pivot movement

Built for pivots, not wheels or pedals

The MAX range packs in more balls than a standard cartridge bearing for roughly 40% more load capacity, for the slow, oscillating movement of a suspension frame pivot. Black Bearing says not to use the MAX range in wheels, pedals or derailleur pulleys — those spin continuously and want a standard-fill bearing instead.

Compatibility & fit

Sold by size — match 10x22x6/9mm (ID x OD x width) against the bearing you're replacing. This is a frame-pivot bearing; check your suspension linkage's bearing size before ordering.

Black Bearing covers manufacturing defects on its bearings for the period stated by the distributor at the time of purchase; wear from normal use, incorrect fitment or contamination is not covered. For warranty support, return the product to Tune Cycles and we'll manage the claim with Black Bearing's Australian distributor.
  • Higher ball count than a standard cartridge bearing for extra load capacity
  • Chrome steel balls (ABEC 3) and SAE 52100 chrome steel races
  • 2RS seals for wet and dust resistance
  • High-fill-rate grease for slow, oscillating pivot movement
Bearing size (ID x OD x width)10x22x6/9mm
GradeMAX High-Ball-Count Pivot
SCV codeBBBG-EB-6900-MAX
SKU SCV-BBBG-EB-6900-MAX
Brand Black Bearing
