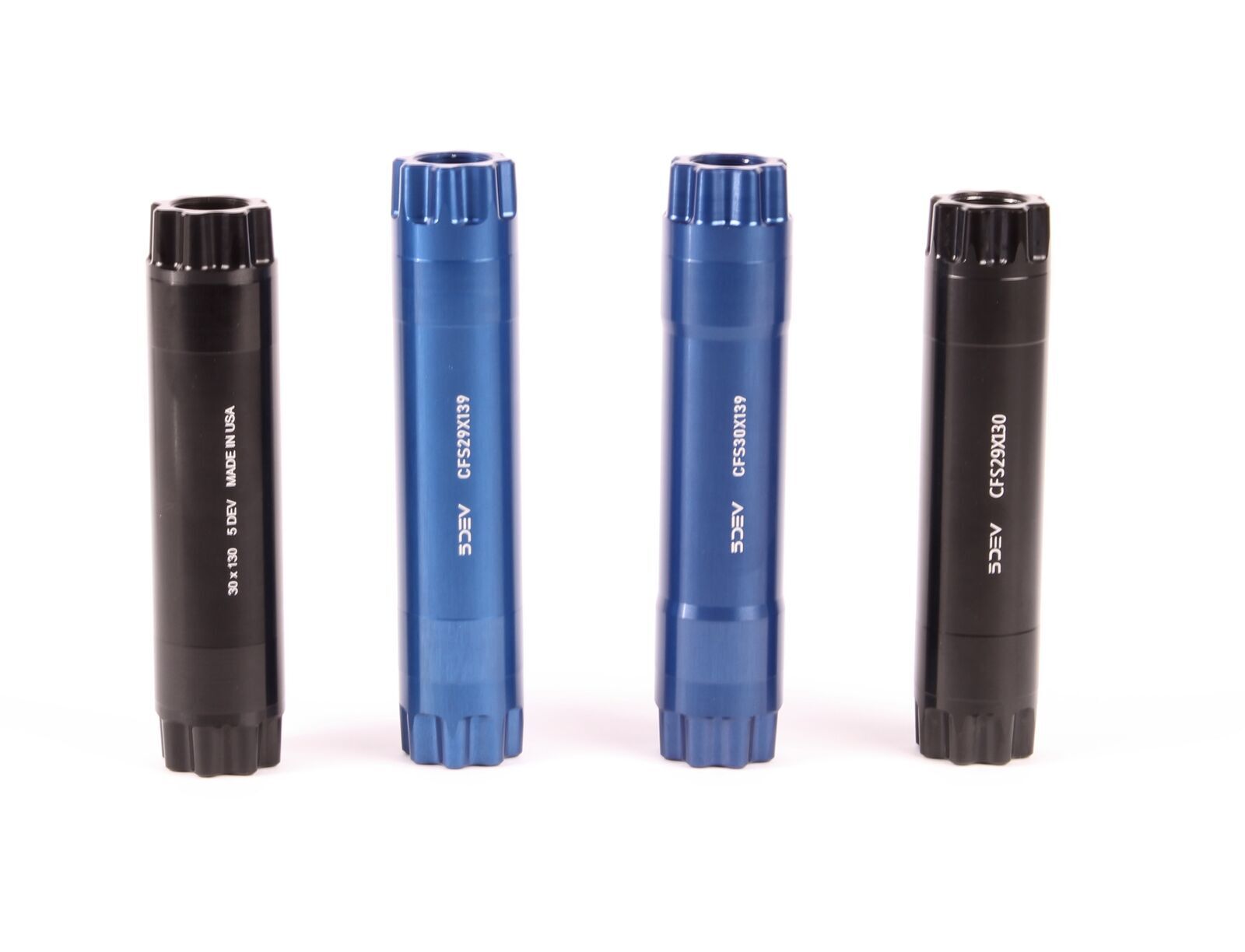

5DEV Replacement Crank Spindle – 29x130mm Boost
SKU code: DSG-5DCFS29x130
In Stock
5DEV cranks use a three-piece design: the arms stay the same and the spindle sets the width, Q-factor and chainline. Swap the spindle to move your 5DEV cranks to a new frame or chainline instead of buying new arms.
Highlights
- 7075 aluminium spindle for 5DEV crank arms
- 29 mm (SRAM DUB size, 28.99 mm) or 30 mm diameter
- Nine options from 118 mm Road to 145 mm DH
- 5DEV says all its cranks take any of its spindles
Choosing a spindle
Diameter: match your bottom bracket. If your bottom bracket is SRAM DUB, you need a 29 mm spindle; most aftermarket bottom brackets with 30 mm bearings take the 30 mm spindle. A Shimano 24 mm bottom bracket has to be replaced with one or the other (5DEV).
Length: 5DEV says most 73 mm XC and enduro MTB shells use its 130 mm spindle. The 136 mm spindle is for SRAM Wide, with a 55 mm chainline, on select MTB setups with extra-wide chainstays, and 5DEV also recommends it if your crank arms sit less than 3 mm from the chainstay.
Q-factor on 5DEV cranks: RGXC titanium road crank 152 mm (Road), 160 mm (Road Wide), 166 mm (XC); titanium MTB crank 168 mm (Boost), 177 mm (SuperBoost+), 183 mm (DH); R-SPEC trail/enduro crank 167 mm (Boost), 176 mm (SuperBoost+).
Options
| Length & Diameter | Use | Chainline (5DEV) | Diameter |
|---|---|---|---|
| 29x118mm Road | Road | 45 mm | 29 mm |
| 29x122mm Road/Gravel | Road Wide / gravel | 47.5 mm | 29 mm |
| 29x130mm Boost | Mountain Boost; most 73 mm XC and enduro shells | 52 or 55 mm | 29 mm |
| 30x130mm Boost | Mountain Boost; most 73 mm XC and enduro shells | 52 or 55 mm | 30 mm |
| 29x136mm 55mm Chainline | SRAM Wide; select MTB setups with extra-wide chainstays | 55 mm | 29 mm |
| 29x139mm SuperBoost+ | SuperBoost+, 73 mm shell | 56.5 mm | 29 mm |
| 30x139mm SuperBoost+ | SuperBoost+, 73 mm shell | 56.5 mm | 30 mm |
| 29x145mm DH | Downhill | 56.5 mm | 29 mm |
| 30x145mm DH | Downhill | 56.5 mm | 30 mm |
Compatibility & fit
Made for 5DEV's own analog (non-eBike) crank arms, including the RGXC titanium, titanium MTB, R-SPEC trail/enduro and Cam Zink Freeride cranks. The bottom bracket is sold separately.
The Tune Cycles workshop can swap the spindle, set the drive-side and non-drive-side spacers and preload, and refit the crank as a separate workshop service. The right bottom bracket tool or bearing press matters, and 5DEV's crank bolt torque is 40 Nm on its MTB cranks and 50 Nm on the RGXC.
5DEV backs its products with a limited 5-year warranty from the date of manufacture, against defects in materials and workmanship. If 5DEV confirms a defect, it replaces the affected part with a comparable model. Talk to us before replacing anything: 5DEV voids the warranty if a part from another maker is fitted in place of the 5DEV component.
This is in addition to your rights under the Australian Consumer Law. Keep your proof of purchase.
For warranty support, return the product to Tune Cycles and we'll manage the claim with 5DEV's Australian distributor.
- 7075 aluminium
- 29 mm (SRAM DUB size) or 30 mm diameter
- Road, Road/Gravel, Boost, 55 mm chainline, SuperBoost+ and DH lengths
- Fits 5DEV crank arms; swap to change width and chainline
| Material | 7075 aluminium |
|---|---|
| Diameter | 29 mm (SRAM DUB size, 28.99 mm) or 30 mm |
| Lengths | 118, 122, 130, 136, 139 and 145 mm |
| Fits | 5DEV analog crank arms |
| Chainline (5DEV) | 118: 45 mm; 122: 47.5 mm; 130: 52/55 mm; 136: 55 mm; 139: 56.5 mm; 145: 56.5 mm |
| Bottom bracket | SRAM DUB for 29 mm, 30 mm bearing BB for 30 mm; sold separately |
| Options | Length & Diameter: 29x118mm Road, 29x122mm Road/Gravel, 29x130mm Boost, 30x130mm Boost, 29x136mm 55mm Chainline, 29x139mm SuperBoost+, 30x139mm SuperBoost+, 29x145mm DH, 30x145mm DH |
| SKU | DSG-5DAXLES |
| Brand | 5DEV |
